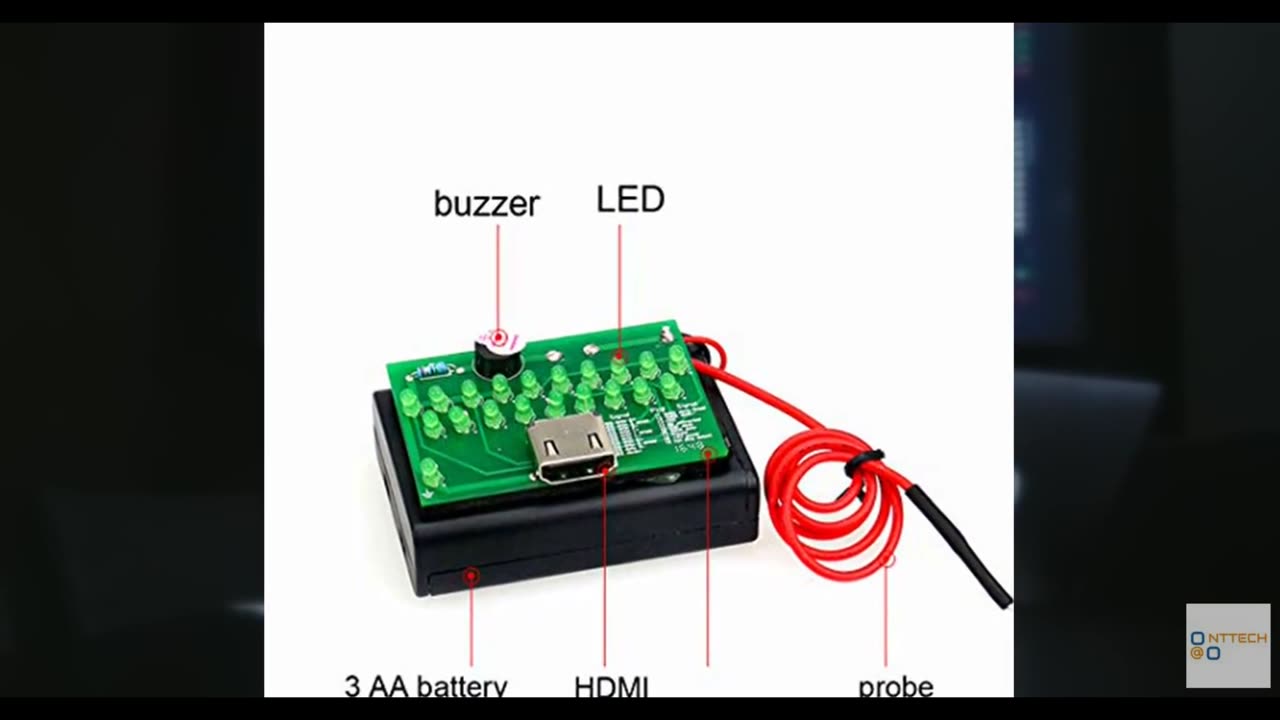

daier HDMI Cable Tester Board HDMI Line Tester DIY Repair
👉 https://amzn.to/4prhJk0 - daier HDMI Cable Tester Board HDMI Line Tester DIY Repair
Optimize your HDMI repair and testing process with the Daier HDMI Cable Tester Board – the ultimate DIY repair tool for HDMI line diagnosis. Designed to help you quickly identify cable issues, ensure proper configuration, and verify continuity, this innovative tester is essential for electronics enthusiasts and professional technicians alike.
Key Features:
- Precise HDMI Cable Testing: Check the status of your HDMI cables effortlessly, ensuring proper connection and functionality.
- Continuity Mapping & Configuration Verification: Map each HDMI line to confirm continuity and correct pin alignment for reliable multimedia transmission.
- Indicator Lights for Each Line: When testing, the corresponding indicator light lights up as the tester contacts each HDMI core, clearly displaying the signal status.
- Compatible with 19 + 1 Pin HDMI Cables: The tester features 19 + 1 lights that map directly to the HDMI connector's pins, providing comprehensive testing coverage.
- Easy to Use: Simply contact the probe with the HDMI cable core, observe the indicator lights, and record the color and number for quick analysis.
How It Works:
The HDMI connector includes 19 + 1 pins, each linked to an indicator light on the tester board. When the probe touches a pin within the HDMI cable core, the corresponding indicator light illuminates, confirming pin integrity and proper wiring. Use this visual feedback to diagnose issues, facilitate repairs, or verify working cables.
Whether you're repairing damaged HDMI connectors or ensuring your cables are correctly wired, the Daier HDMI Cable Tester Board offers precision, ease of use, and reliability. Make your HDMI troubleshooting faster and more accurate today!
Enhance your DIY toolkit with this essential HDMI line testing device – order now for professional-grade cable verification!
(As an Amazon Associate, I earn from qualifying purchases.)
-
