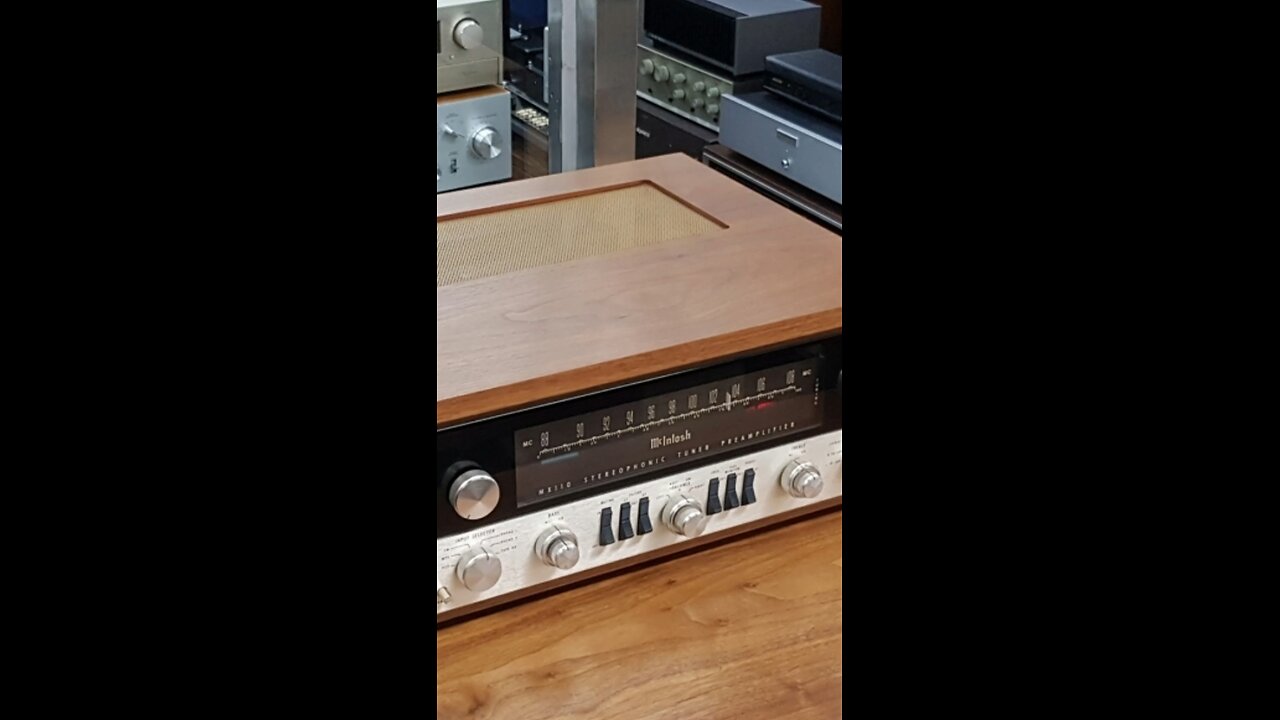

McIntosh MX110 Preamp

McIntosh MX110 Preamp
https://www.hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자

Key Specifications
Frequency Response: 20Hz to 20kHz
Total Harmonic Distortion (THD): 0.2%
Input Sensitivity: 3mV (MM/Phono), 300mV (Line/Aux)
Signal-to-Noise Ratio (SNR): 80dB (Line)
Output: 300mV (Line), 3V (Pre out)

Tuner Features
Tuning Bands: FM
Tuning Scale: Analog
Tuner Sensitivity: Better than 2.5 microvolts
Indicators: Electron ray tube tuning indicator and FM multiplex indicator
Tuning Method: Flywheel tuning with a logging scale for accurate station recall
Muting: Two-position control for interstation noise suppression

Preamplifier Features
Controls: Individual channel bass and treble controls, loudness control, phase switch
Inputs: Two phono inputs, auxiliary input, tape head, and tape monitor
Outputs: Main outputs, L+R (monophonic) output, and tape output
Power Switch: Concentric with the balance control

Physical and Construction
Dimensions: 16 inches wide x 5 7/16 inches high x 13 inches deep
Weight: 27.5 lbs (or 12.5 KG)
Finish: Black and gold anodized front panel
Power: 105-125 volts AC, 50/60 cycles, 75 watts
