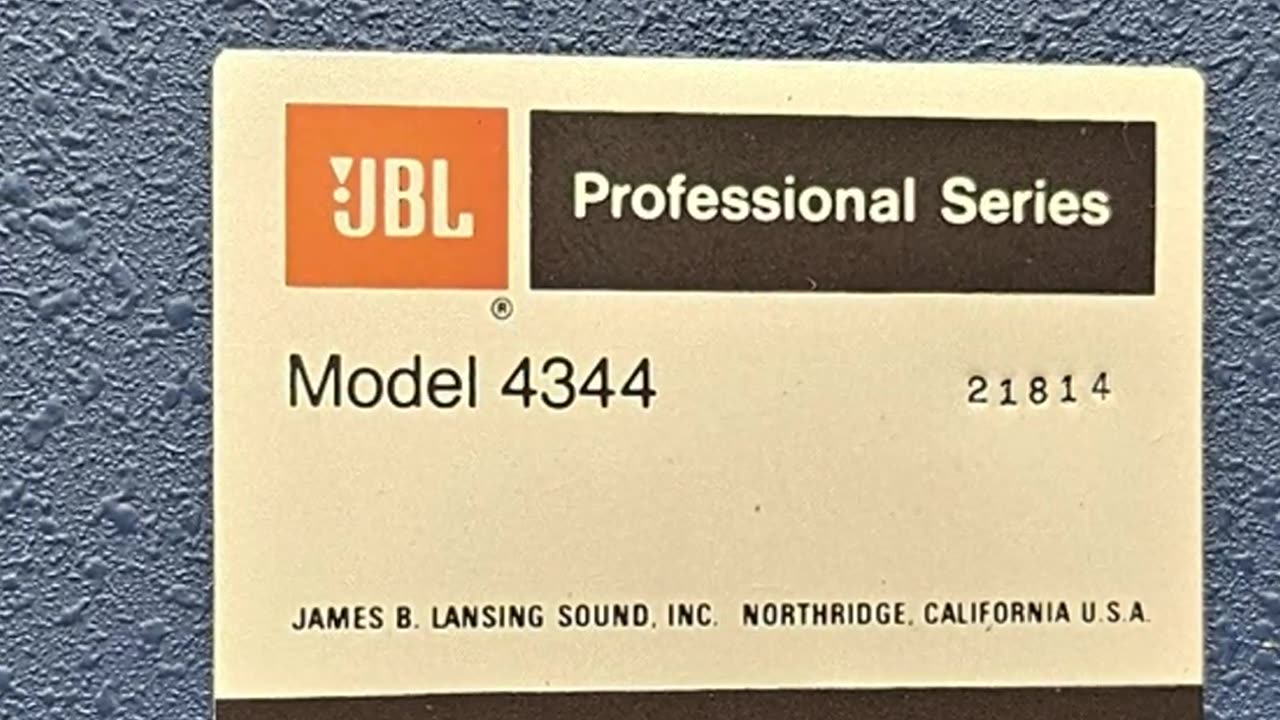

JBL 4344 Speaker

JBL 4344 Speaker
https://www.hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자 #오디오 #하이엔드 #빈티지

Type: 4-Way, 4-Speaker, Bass Reflex System, Bookshelf Type

Units:
Low Band: 38 cm cone type (2235H)
Mid-Low Band: 25 cm cone type (2122H)
Mid-High Band: Horn Type (2307 + 2308, 2421B for early version, 2425J for late version)
High Frequency: Horn Type (2405, 2405H for late version)
Playback Frequency Band: 35Hz to 20kHz ±3dB

Allowable Input:
Network: 120W
Bi-amplifier: 200W (290Hz or less); 150W (290Hz or more)
*Rated value from 2-hour pink noise test as per IEC268-5
Sound Pressure Level: 93dB/W/m (average 500Hz to 2.5kHz)

Impedance: 8Ω
Crossover Frequency:
Network: 320Hz, 1.3kHz, 10kHz
Bi-amplifier: 290Hz (18dB/oct.)
Directivity: Horizontal 60° x Vertical 30° (at 16kHz)

Enclosure Volume:
Woofer: 156L
Mid-woofer: 14L
External Dimensions: 635mm (W) × 1051mm (H) × 435mm (D)
Weight: 96kg
