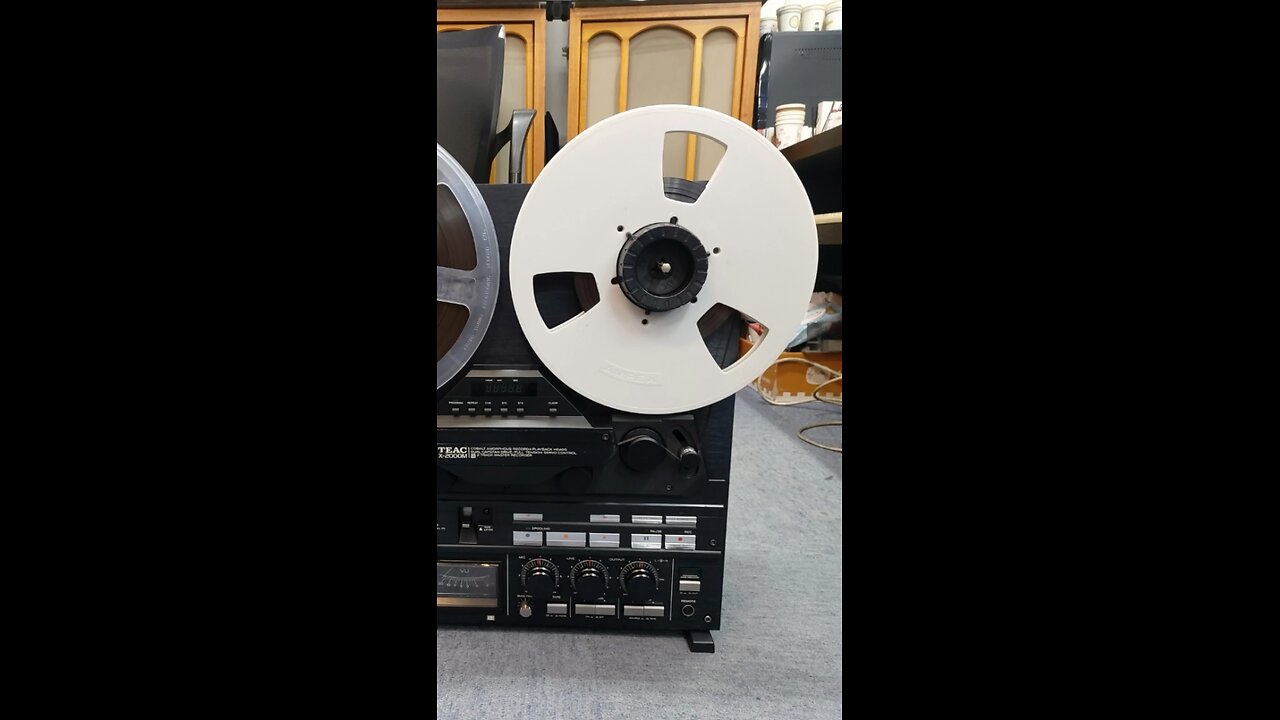

Teac X-2000M Reeldeck

2 days ago
13

Teac X-2000M Reeldeck
https://hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자 #audio #오디오 #하이엔드 #빈티지

General Specifications
Model: X-2000M
Type: Reel-to-reel tape deck
Production Dates: 1984–1992
Origin: Japan
Heads: 4 (1 x 2-track record, 1 x 2-track playback, 1 x 4-track playback, 1 x erase)
Motors: 3 (1 x capstan, 2 x reel)

Performance & Audio
Track System: 2/4-track, 2-channel stereo/monaural
Tape Speeds: 7 1⁄2 and 15 ips
Reel Size: 7 or 10 inches
Frequency Response:
15 ips: 30 – 45,000 Hz (+/- 3 dB)
7 1⁄2 ips: 30 – 40,000 Hz (+/- 3 dB)
Wow and Flutter: 0.04% (15 ips)
Signal-to-Noise Ratio: 56 dB
Total Harmonic Distortion: 0.8%

Features
Noise Reduction: DBX
Heads: Cobalt amorphous heads
Equalization: Switchable NAB and IEC equalization
Tension Control: Features a tension control system for tape protection
Tape Types: Can use EE (Extra Efficient) tapes
Remote Control: Compatible with the RC-204 remote control

Physical Specifications
Dimensions: 20.32″ x 18.58″ x 10.55″ (516 x 472 x 268mm)
Weight: 21 kg (46.28 lbs)
