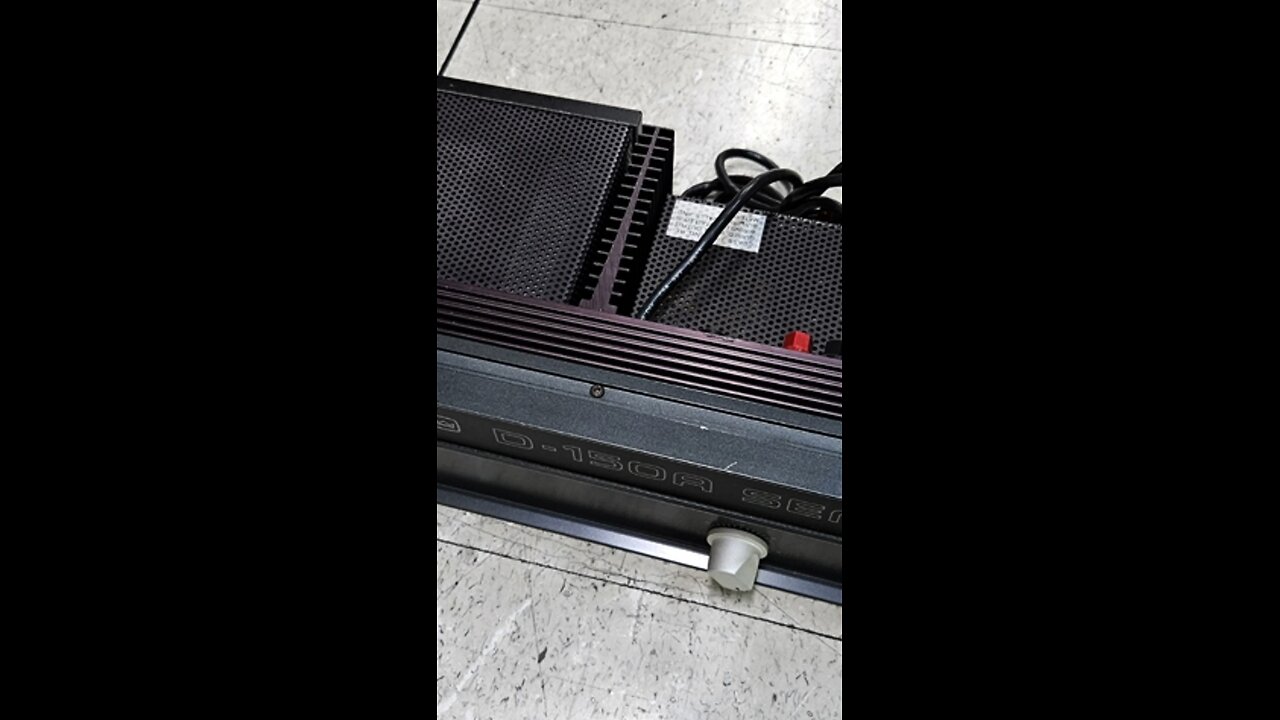

Crown D150A Series2 Poweramp
https://hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자 #audio #오디오 #하이엔드 #빈티지

Power Output (Stereo):
- 8 ohms: 80 watts per channel minimum RMS (1 Hz – 20 kHz, 0.05% THD)
- 4 ohms: 155 watts per channel (1 kHz, 0.1% THD)

Power Output (Bridge-Mono):
- 8 ohms: 315 watts (1 kHz, 0.1% THD)
- 16 ohms: 160 watts minimum RMS (1 Hz – 20 kHz, 0.05% THD)

Input Sensitivity (8 ohms):
- 1.19 V ±2% for 80 watts rated output (with an optional modification available for 0.775 V sensitivity)

Input Impedance: 25 K ohms nominal

Frequency Response:
- 8 ohms: ± 0.1 dB from DC to 20 kHz at 1 watt
- 8 ohms: ± 1 dB from DC to 100 kHz at 1 watt

Total Harmonic Distortion (THD):
- 8 ohms: <0.001% from 20 to 400 Hz, increasing linearly to 0.05% at 20 kHz, at 80 watts RMS

Intermodulation Distortion (IMD):
- 8 ohms (SMPTE): <0.01% from 0.25 watts to 80 watts

Signal-to-Noise Ratio (SNR): >110 dB below 80 watts into 8 ohms (20–20,000 Hz)

Damping Factor (8 ohms): >400 from DC to 400 Hz

Slew Rate (8 ohms): 6 volts per microsecond

Dimensions (H x W x D): 5.25" x 19" x 8.75" (13.3 cm x 48.3 cm x 22.2 cm).

Weight: 24 lbs (10.9 kg).
