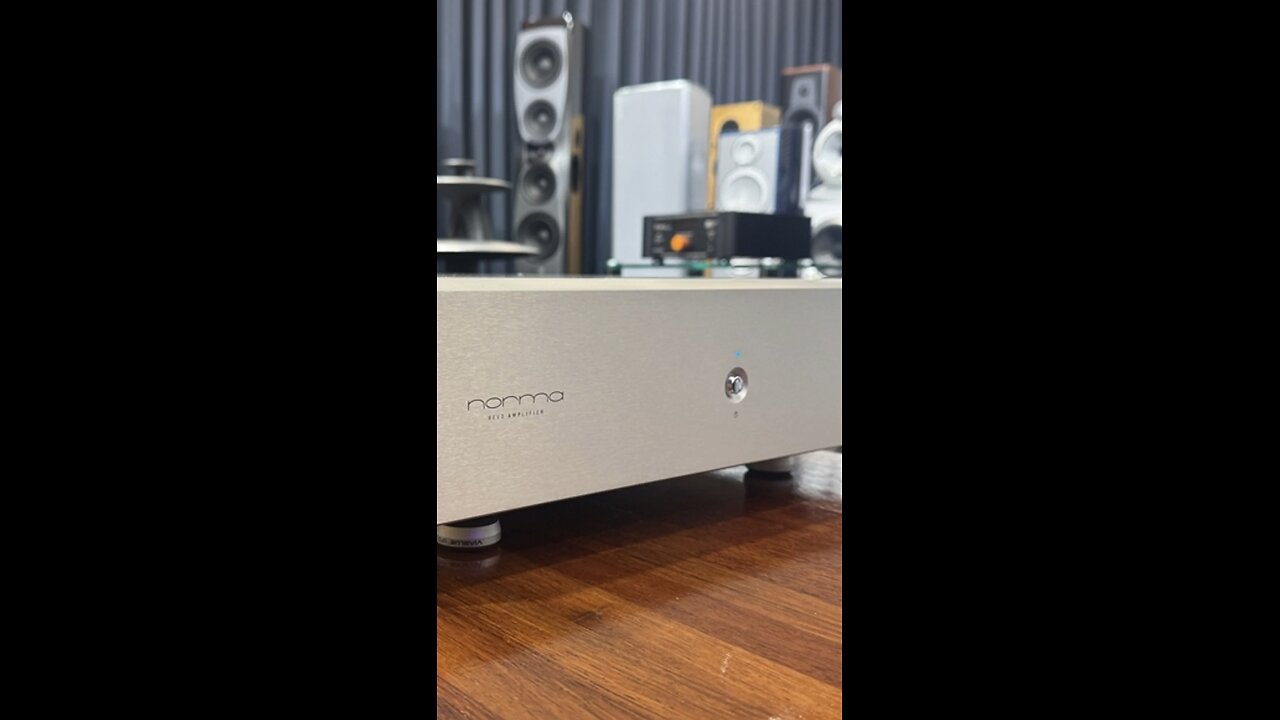

Norma REVO PA-150 Poweramp

9 days ago
12

Norma REVO PA-150 Poweramp
https://hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자 #audio #오디오 #하이엔드 #빈티지

Connections:
- 1 RCA
- 1 XLR Balanced

Input Impedance:
- 47Kohm (non sel. input)
- 33Kohm (sel. input)

Outputs Voltage:
- 1 Binding Post couple, 4mm Banana and forks

Frequency Response:
- 0 Hz – 2.0 MHz (-3dB, non filtered)

Output Power:
- 150W RMS / 8Ohm (per channel)
- 280W RMS / 4 Ohm (per channel)

Gain, Sensitivity:
- 28.5 dB, 1.30 V r.m.s. / 150 W – 8 Ohm

Configuration:
- Dual Mono
- Solid state

Power Devices:
- MosFet, 4 couple each channel

Available Output Current:
- 48 A continuous (each channel)
- 200 A peak (each channel)

Capacity of Filter:
- 72.000 Uf
- 12 capacity for each channel

Electric Transformers:
- 2 toroidal special audio use
- 400 VA each channel

Supply:
- 230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some country)

Dimensions (HxWxD):
- 110x430x365mm (excluding footers and rear connections)

Note:
- Stereophonic final amplifier

Weight:
- 25 Kg
