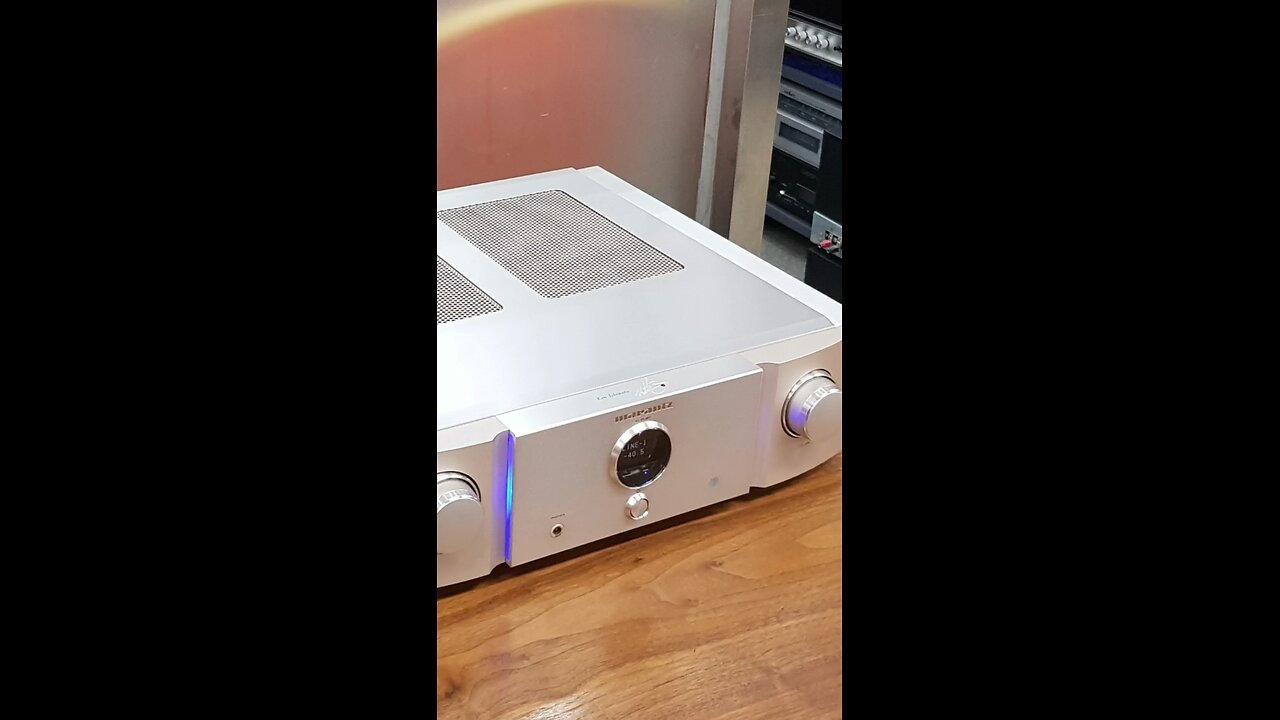

Marantz PM-KI Ruby Intiamp

Marantz PM-KI Ruby Intiamp
https://hifiplaza.co.kr

#hifi #하이파이 #audiophile #hiend #vintage #hifiplaza #하이파이플라자 #audio #오디오 #하이엔드 #빈티지

Power Output (Simultaneous Drive of Both Channels):
- 100 W x 2 (8 Ω load, 1 kHz, THD 0.05%)
- 200 W x 2 (4 Ω load, 1 kHz, THD 0.1%)

Total Harmonic Distortion (1 kHz, simultaneous drive of both channels, 100 W, 8 Ω load):
- 0.005%

Frequency Response (CD, 1 W, 8 Ω load):
- 5 Hz – 50 kHz ±3 dB

Damping Factor (8 Ω load, 20 Hz – 20 kHz):
- 500

Input Sensitivity / Input Impedance:
- Phono (MC): 250 μV / 100 Ω
- Phono (MM): 2.3 mV / 39 kΩ
- CD/Line/Recorder: 220 mV / 13 kΩ
- Power Amp: 1.1 V / 13 kΩ

Maximum Allowed Phono Input Level (1 kHz):
- MC: 8 mV
- MM: 80 mV

RIAA Deviation (20 Hz – 20 kHz):
- ±0.5 dB

Signal-to-Noise Ratio (IHF-A, 8 Ω load):
- Phono (MC): 75 dB (0.5 mV Input)
- Phono (MM): 88 dB (5 mV Input)
- CD/Line/Recorder: 107 dB (Rated Output)

Tone Control:
- Bass (50 Hz): ±6 dB
- Treble (20 kHz): ±6 dB

Power Supply:
- AC 230 V, 50/60 Hz

Power Consumption:
- 130 W

Standby Power Consumption:
- 0.2 W
